FEATURES
- One inlet for all size falls (12"-96" wide)
- Easy to install
- Compact design
- Low water flow requirements
- Self-draining / self-winterization
- No rock trap necessary
This feature can be mounted below the coping in a raised bond beam. With one standard plumbing connector, this feature is easily installed in any type of pool.
The pattern of holes in each of the three sequential
baffles has the same total area of opening as the lip of the feature.
This produces an unexcelled water sheet without back pressure.
Standard Sizes
- 12" - 60" sizes use 1-1/2" pipe and coupling.
- 72" - 96" sizes use 2" pipe and coupling.

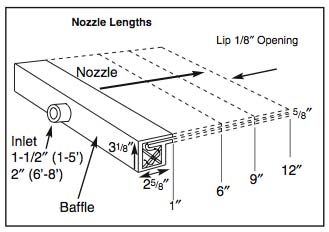

Nozzle Lengths
- Standard 1", Extended 6", 9" and 12"
Nozzle Colors
- Standard White
- Optional Black and Gray available at no extra charge.

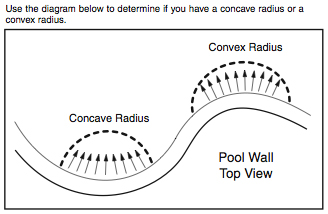

Radius Cuts to Nozzles
- It is recommended that your radius is cut when you order.
- If you do cut it yourself, the design of the water feature offers easy cutting due to the segmented spacer support system.
Pump Sizing
- One gallon per minute, per inch of length, is the standard of sizing pipe and pump.
- Greater projection of the water sheet can be produced with increased flow rates.
- It is recommended to use a dedicated pump and in-line filter with water features over 36" in length.
