Aquaforce Solids Handling Pumps

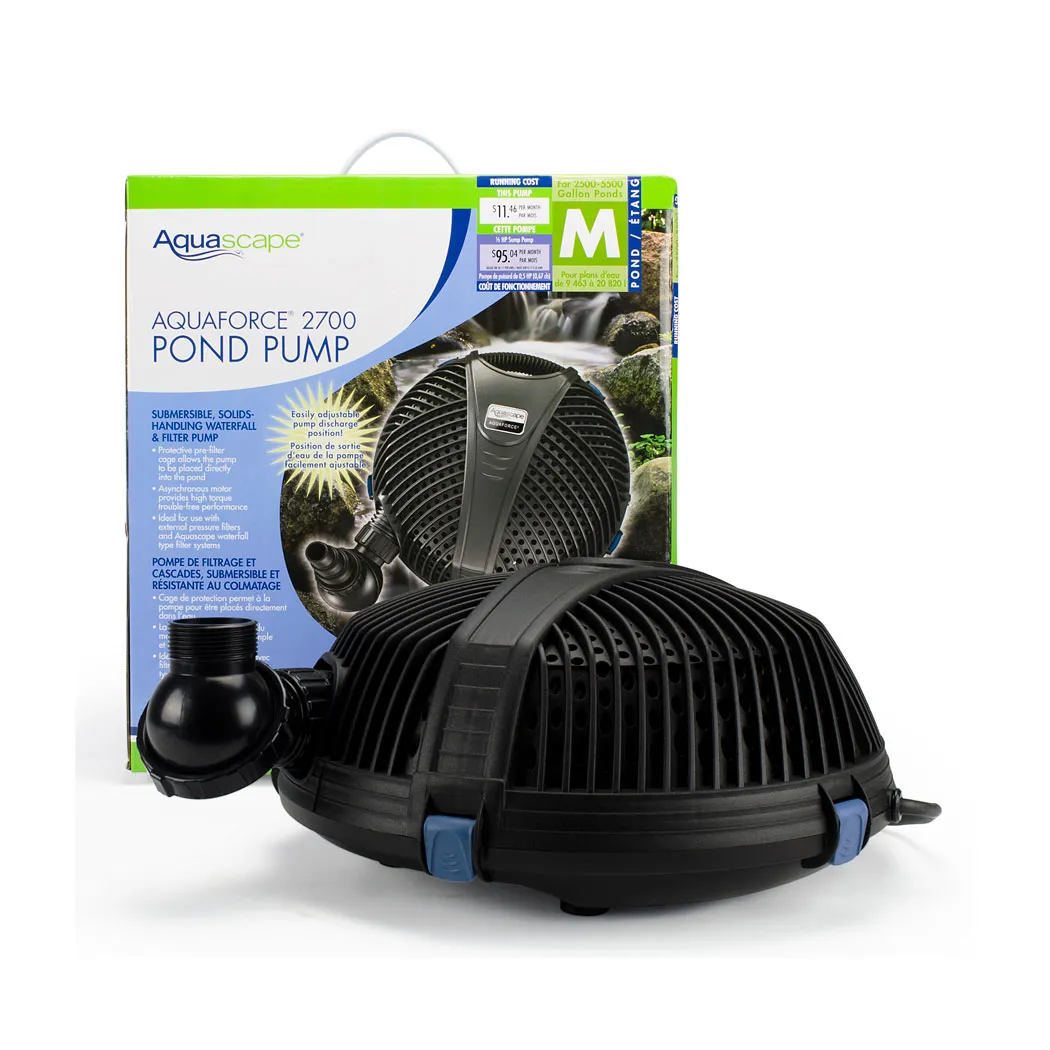

AquaForce Solids-Handling and AquaForce Adjustable Flow Solids-Handling Pond Pumps



AquaForce® pumps combine energy-efficient performance, high flow rates, and ease of maintenance making this pump the ideal choice for discriminating pond owners. A protective pre-filter cage and wide, flat base allow the AquaForce Pump to be placed directly into the pond.

Its oil-free design and high-torque performance will provide years of trouble-free operation, while the protective pump cage will handle solids up to one-quarter of an inch, preventing clogging and reducing maintenance. Making the AquaForce pump ideal for use with external pressure filters or Aquascape waterfall style filter systems.

Excellent Energy Efficiency

Aquascape uses asynchronous motor technology in its AquaSurge pumps, providing high torque, trouble-free performance at higher head heights as well as excellent energy efficiency compared to magnetically driven pond pumps. The unique ceramic shaft with cooling port also prevents the pump from overheating.

You’ll save hundreds of dollars over traditional water pumps, and its oil-free design helps prevent pond contamination.



Learn the many features and benefits of AquaForce Pond Pumps. This energy-efficient pump is a popular choice for a variety of water features.

AquaForce Cutaway



  AquaForce 1000 Solids Handling Pond Pump AquaForce 1800 Pump Solids Handling Pond Pump AquaForce 2700 Solids Handling Pond Pump AquaForce 3600 Solids Handling Pond Pump AquaForce 5200 Solids Handling Pond Pump AquaForce 4000-8000
  AquaForce 1000 AquaForce 1800 AquaForce 2700 AquaForce 3600 AquaForce 5200 AquaForce 4000-8000
Model Number 91011 91112 91012 91113 91013 91104
Maximum Flow Rate (GPH) 1070 2149 2695 3868 5284 7793
Adjustable Flow ? ? ? ? ? ?
Maximum Head Height 10 feet 16.5 feet 14 feet 18 feet 24 feet 28 feet
Motor Type Asynchronous Asynchronous Asynchronous Asynchronous Asynchronous Asynchronous
Wattage 55 160 147 215 360 500 to 660
Amperage 0.51 1.33 1.25 1.8 3 5.5
Power Cord Length 25 feet 25 feet 25 feet 25 feet 25 feet 20 feet
Pump Discharge Diameter 1.5-inch MPT 1.5-inch MPT 1.5-inch MPT 1.5-inch MPT 1.5-inch MPT 1.5-inch MPT
Optimum Pipe Diameter 1.25 - 2 inch 1.25 - 2 inch 1.25 - 2 inch 1.25 - 2 inch 1.25 - 2 inch 2 or 3 inch
Pump Dimensions 14 x 14 x 6.5 inches
(LxWxH)
14 x 14 x 6.5 inches
(LxWxH)
14 x 14 x 6.5 inches
(LxWxH)
14 x 14 x 6.5 inches
(LxWxH)
14 x 14 x 6.5 inches
(LxWxH)
14 x 14 x 6.5 inches
(LxWxH)
App/WIFI Connected ? ? ? ? ? ?
Warranty (Limited) 3 years 3 years 3 years 3 years 3 years 3 years
  View Product View Product View Product View Product View Product View Produc

Click Here to watch short video about this product.



Pond Volume

A basic pond pump will have the capability of turning the total volume of water over once per hour. Therefore, before choosing a pond pump, you need to know the number of gallons of water in your feature. You can find the volume of your pond in gallons with this useful equation:

(Length x Width x Average Depth x 7.48) x 0.8 = US Gallons*

*Length, Width and Depth are measured in feet
