Aquascape PL and PN Solids-Handling

Aquascape PL and PN Solids-Handling Pond Pumps


World-renowned for their quality, dependability, and performance, Aquascape PL and PN series pumps are ideal for use in skimmer filters and Pondless Waterfall applications.

Constructed of stainless steel and composite resin for strength and corrosion resistance; with a semi-vortex impeller design enabling the pump to handle solids effectively. Resulting in less maintenance and trouble-free performance.

Engineered for Years of Use

Engineers have designed the Aquascape PL series pump to be hydraulically ‘dialed’ into the lower total dynamic head ranges typically found on water feature applications, helping increase the lifespan of the pump by reducing vibration and premature component wear.

The energy-efficient, continuous-duty, direct-drive motor operates at lower temperatures, extending the life of the pump significantly. Each PL and PN Solids-Handling Pond Pump also contains a built-in thermal overload, protecting it from damage if ever run in low-water conditions.



Compare Aquascape PL and PN Solids-Handling Pond Pumps

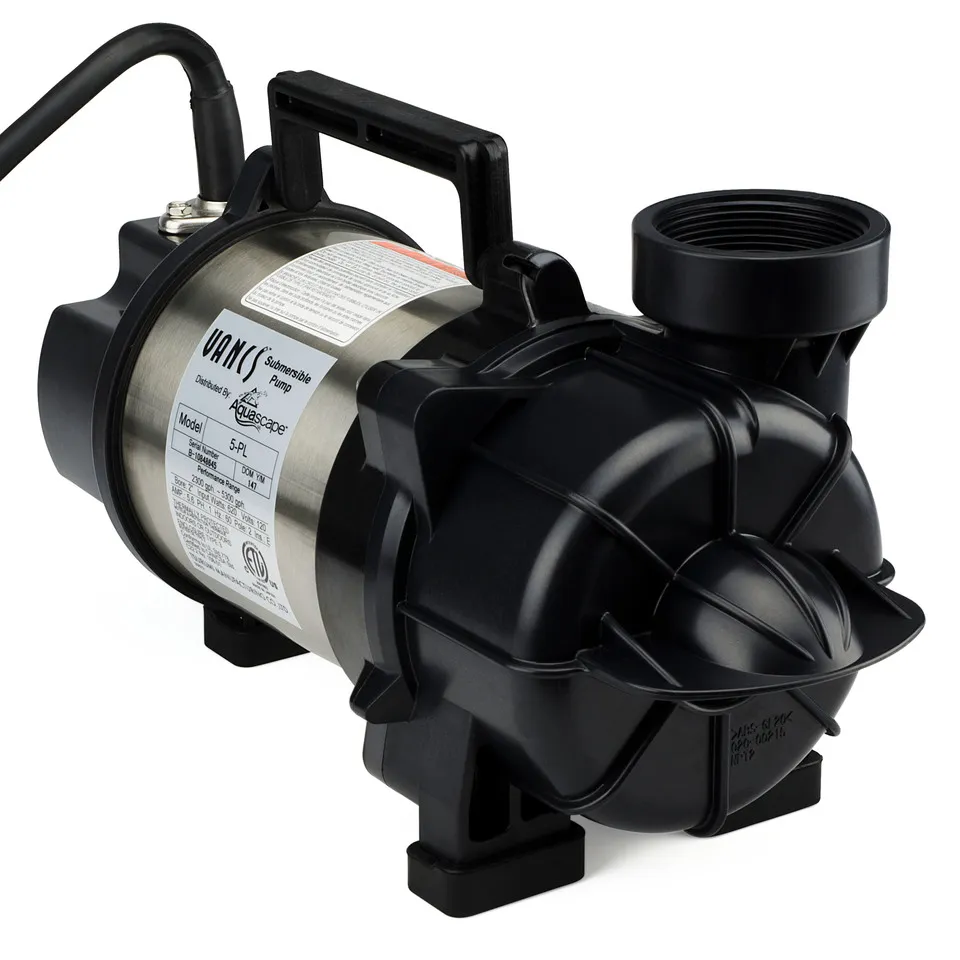

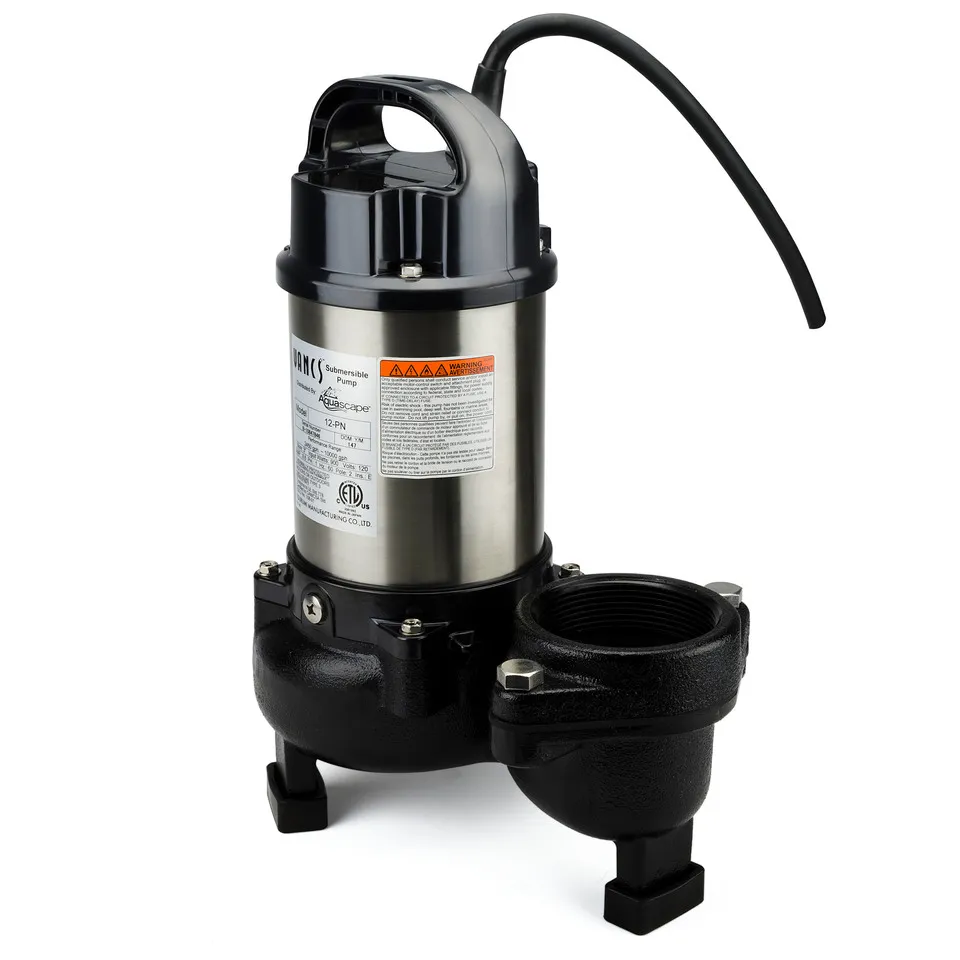

  3PL 5PL 9PL 8PN 12PN
  View Product View Product View Product View Product View Product
Model Number 29975 29976 29977 29495 30391
Maximum
Flow Rate (GPH)
3,300 5,300 7,300 5,548 10,000
Maximum
Head Height
14 feet 23 feet 35 feet 56 feet 23 feet
Motor Type Direct Drive Direct Drive Direct Drive Direct Drive Direct Drive
Wattage 320 620 1000 1000 900
Amperage 3.1 5.6 8.6 9.1 9.1
Power Cord
Length
20 feet 20 feet 20 feet 20 feet 20 feet
Pump Discharge
Diameter
2 inch 2 inch 2 inch 2 inch 3 inch
Optimum
Pipe Diameter
1.5 - 2 inch 1.5 - 2 inch 2 or 3 inch 2 or 3 inch 3 inch
Pump
Dimensions
12.2 x 5.6 x 7.1 inches
(LxWxH)
13.2 x 5.9 x 7.3 inches
(LxWxH)
14 x 5.9 x 7.3 inches
(LxWxH)
9.3 x 6.4 x 15 inches
(LxWxH)
11.7 x 7.7 x 15.1 inches
(LxWxH)
Warranty (Limited) 2 years 2 years 2 years 2 years 2 years
